DRB Variable Speed Floor Mount

Description

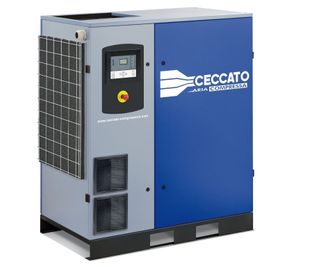

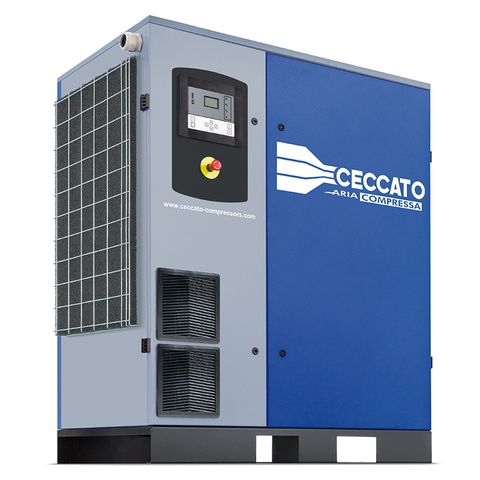

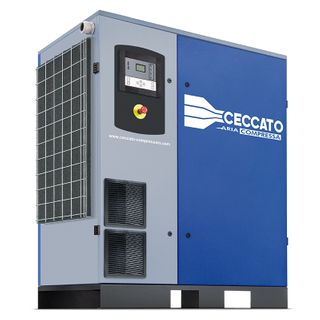

The DRB IVR range of variable speed compressors is equipped with a very efficient element, a direct driven transmission, a high frequency motor and a new converter. The DRB fixed speed version combines the same element with a high efficiency gearbox and IE3 motor.


Key Benefits:

• Highly reliable gear or direct driven transmissions for trouble-free operation
• Compact all-in-one system
• Lower energy consumption thanks to IE3 motors or IVR technology
• Outstanding and first-class components
• Optimized air flow and big air cooler make for a very efficient cool down
• Service components are easy to reach for smooth serviceability
• A wide range of options to customize your machine tailored to your needs

Downloads

Code Image Product Name Details Stock Level Price Quantity
DRB30IVR
ROTARY SCREW 30HP 8-12.5 BAR BASE MT CFM130-36
ROTARY SCREW 30HP 8-12.5 BAR BASE MT CFM130-36

Details

  • Noise Level:
    68 dB(a)
  • Dimensions:
    L1320 W830 H1555
  • Flow:
    L/sec 13-49 / CFM 46-176
Out of Stock
POA
DRB35IVR
ROTARY SCREW VARIABLE SPEED 35HP 12.5BAR MAX
ROTARY SCREW VARIABLE SPEED 35HP 12.5BAR MAX

Details

  • Noise Level:
    69 dB(a)
  • Dimensions:
    L1320 W830 H1555
  • Flow:
    L/sec 13-79 / CFM 28-167
Out of Stock
POA
DRB40IVR
ROTARY SCREW VARIABLE SPEED 40HP 12.5BAR MAX
ROTARY SCREW VARIABLE SPEED 40HP 12.5BAR MAX

Details

  • Noise Level:
    70 dB(a)
  • Dimensions:
    L1320 W830 H1555
  • Flow:
    L/sec 17-93 / CFM 36-197
Out of Stock
POA
