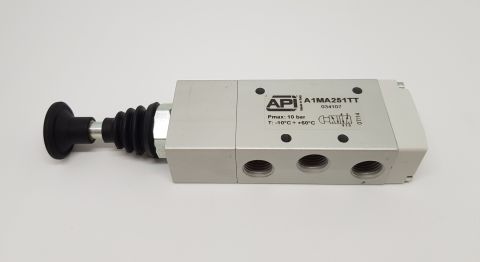

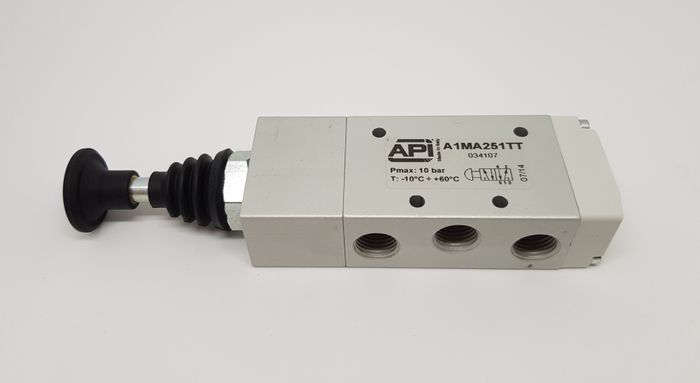

5.2 1/4 Push/Pull Valve 2 Position 034107

Stock Code:
A1MA251TT
Price:
$204.11 inc GST

Description

5/2 push pull, 2 positions

Valves series A1 - 1/4", 5/2 - 5/3 manually operated

Technical Data
Fluid - Compressed filtered air with or without lubrication. Lubrication, if started, must be continued
Pressure Range - 0 ÷ 10 Bar
Temperature Range - -10°C ÷ + 80°C
Orifice - 8mm
Flow - 1100 NI/min at 6 bar with ?P 1 bar
Mounting - in any position
Materials:
Body - Anodized aluminum
Cover - Anodized aluminum
Bottom Plates - Delrin 500
Spool - Hard aluminum anodized
Distances - Fortron 1140 L4
Seals - Hydrogenated Nitrile Butadiene Rubber (HNBR)
Lever - Steel

Series of spool valves, with static seals, high flow, for panel or sub-base mounting
