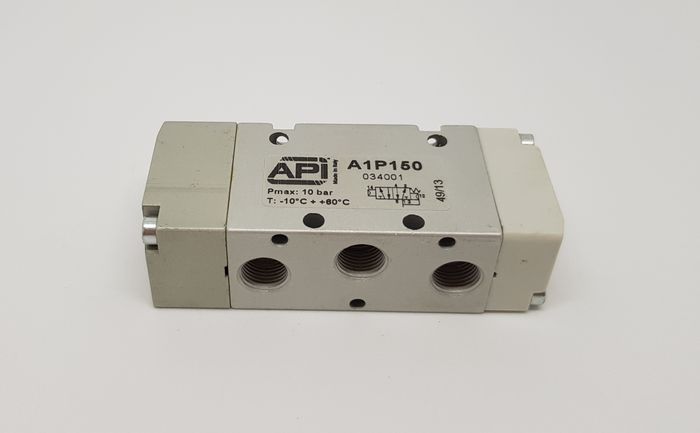

5.2 1/8" Pilot / Spring Valve 034001

Stock Code:
A1P150
Price:
$98.84 inc GST

Description

5/2 pilot/ spring

Valves series A1 - 1/8", 5/2 - 5/3 pneumatically operated

Technical Data
Fluid - Compressed filtered air with or without lubrication. Lubrication, if started, must be continued
Pressure Range - Spring return: 1,5 ÷ 10 bar | Bistable: 1 ÷ 10 bar | 3 Position: 2,5 ÷ 10 bar
Temperature Range - -10°C ÷ + 60°C
Orifice - 6,5mm
Flow - 650 NI/min at 6 bar with ?P 1 bar
Minimum Piloting Pressure - 1,5 bar
Mounting - in any position
Materials:
Body - Anodized aluminum
Cover - Delrin 500
Spool - Hard aluminum anodized
Distancers - Fortron 1140 L4
Seals - Hydrogenated Nitrile Butadiene Rubber (HNBR)

Series of spool valves, with static seals, high flow, for panel or sub base mounting.
