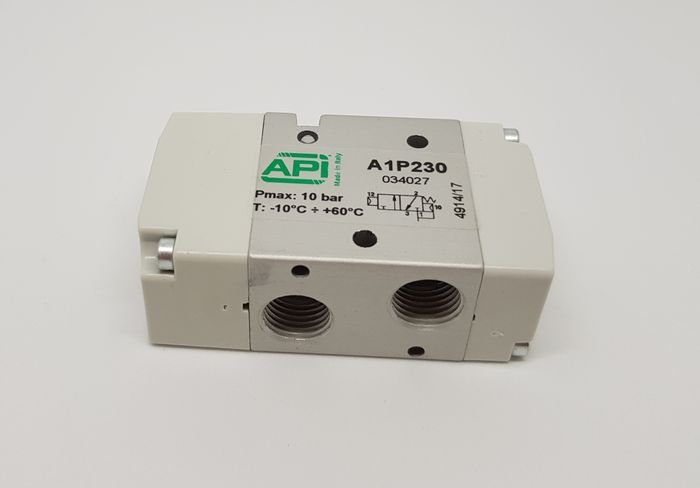

3.2 1/4" Pilot / Spring NC Valve 034027

Stock Code:
A1P230
Price:
$98.44 inc GST

Description

3/2 NC

Valves series A1 - 1/4", 3/2 pneumatically operated

Technical Data
Fluid - Compressed filtered air with or without lubrication. Lubrication, if started, must be continued
Pressure Range - Spring return: 1,5 ÷ 10 bar | Bistable: 1 ÷ 10 bar
Temperature Range - -10°C ÷ + 60°C
Orifice - 8mm
Flow - 1.100 NI/min at 6 bar with ?P 1 bar
Minimum Piloting Pressure - 1,5 bar
Manual Override - Bistable
Materials:
Body - Anodized aluminum
Cover - Delrin 500
Spool - Hard aluminum anodized
Distancers - Fortron 1140 L4
Seals - Hydrogenated Nitrile Butadiene Rubber (HNBR)

Series of spool valves, with static seals, high flow, for panel or sub base mounting.

Stock Level:
In Stock
