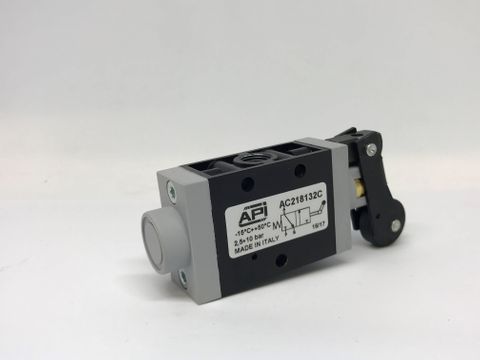

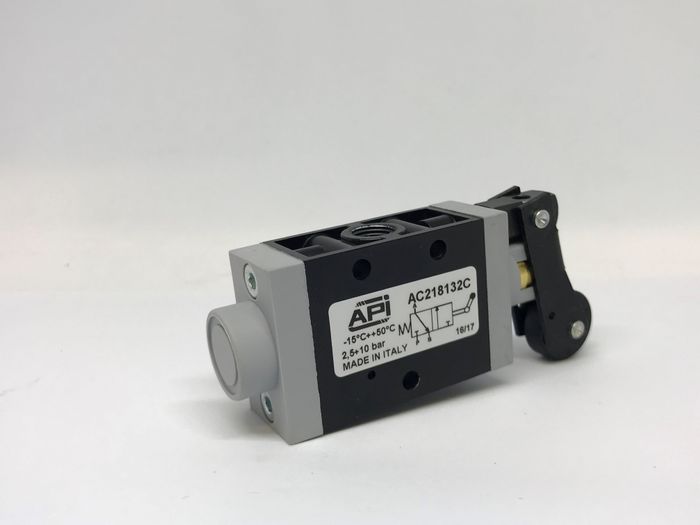

3.2 1/8" Lever/Roller Valve Bi Directional N.C

Stock Code:
AC218132C
Price:
$143.75 inc GST

Description

3/2, with bi-directional lever and roller, N.C

Mechanically operated valves '4 and 1/8"
1/8", 3/2 normally closed and 5/2 single stable position

Technical Data
Fluid - Compressed filtered air with or without lubrication. Lubrication, if started, must be continued
Pressure Range - 0 ÷ 8 bar
Temperature Range - -20°C ÷ + 80°C
Orifice - 6mm
Flow - 900 NI/min
Connections - 1/8"
Fixing - Through the holes on the body
Mounting - In any position
Materials:
Body - Painted die-cast aluminum
Heads - Plastic
Seals - Nitrile Rubber (NBR)

Series of spool valves mechanically operated (plunger, bi-directional and uni-directional lever)
