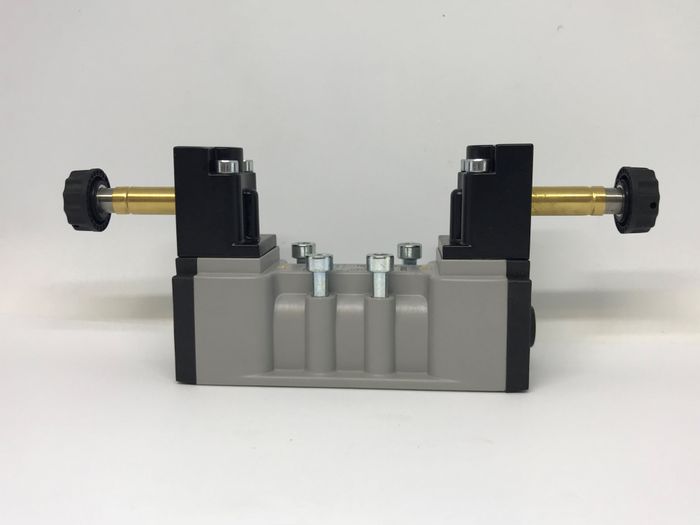

5/2 Solenoid/Solenoid Valve

Stock Code:
ISO1E51
Price:
$296.18 inc GST

Description

5/2 solenoid/solenoid

Valves ISO 5599/1
ISO1, 5/2 - 5/3, electrically operated, with cnomo pilot

Technical Data
Fluid - Compressed filtered air with or without lubrication. Lubrication, if started, must be continued
Pressure Range - 0 ÷ 10 bar
Temperature Range - -10°C ÷ + 60°C
Orifice - 8,5mm
Flow - 1100 NI/min at 6 bar with ?P 1 bar
Minimum Piloting Pressure - Spring Return: 2 bar | Bistable: 1 bar | 3 Positions: 2,5 bar
Mounting - In any position
Electropilot - Conforming to cnomo
Manual Override - Bistable on solenoid pilot - Spring return on valve body
Materials:
Body - Die-cast painted aluminum
Cover - PBT
Spool - Hard aluminum anodized
Distancers - Aluminium
Seals - Hydrogenated Nitrile Butadiene Rubber (HNBR)

Series of spool valves, conforming to ISO 5599/1 standards for the mounting only on sub-base, with cnomo pilot.
