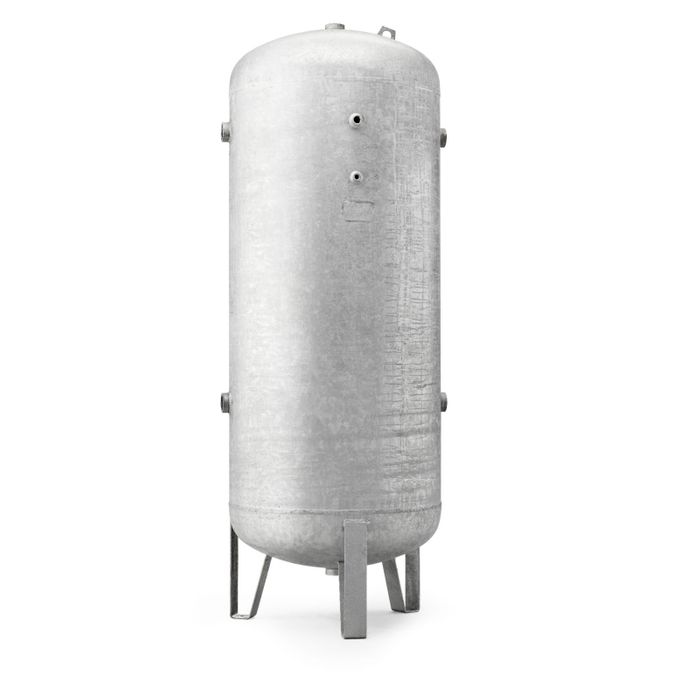

Air Receiver Vertical 725Lt 10.8Bar Galvanised

Stock Code:
V725/10.8Z
Price:
$3,620.05 inc GST

Description

Suitable for any application using compressed air:
• Storage function in order to handle high air consumption
• Stabilize pressure peaks and provide a stable air flow
• Perform a preliminary separation and removal of condensate

Galvanized vessels
Galvanization is used to protect steel against corrosion. The process itself is simple:
the vessel is completely submerged in a zinc liquid bath.
As a result, the zinc coating perfectly adheres to the entire surface of the tank,
ensuring full protection of the steel.

How to select the size of my receiver?

There is no one rule that fits all as some applications require larger air tanks because of the process.

However, two rules of thumb that can help to fine tune:

Your air receiver capacity should be at least 1/4 of your free air delivery expressed in m³/min.

Base yourself on the compressor’s motor power and calculate the capacity:

• Motor power in HP x 30
• Example: If you install a 10HP screw compressor, your receiver capacity should be minimally 300 liter

Correctly sizing your air receiver brings following benefits for your compressors’ operations:
• Less waste during unloading period
• Overall smoother operation
• Avoid mechanical stress on several components
