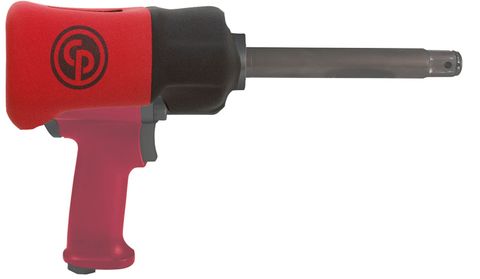

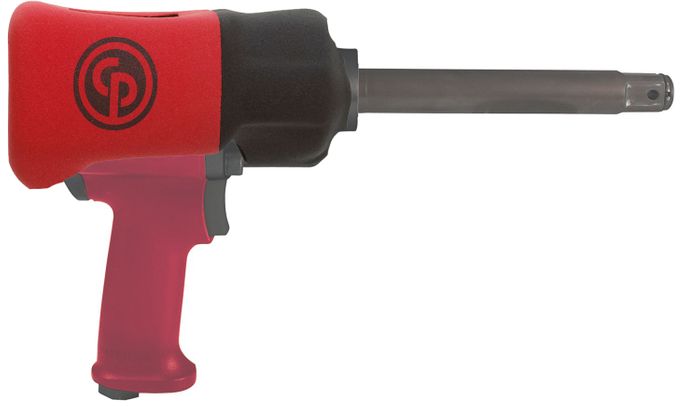

Impact Wrench 3/4'' 6'' Anvil + Protective Cover 8940167498

Stock Code:
CP7763-6+PC
Price:
$1,551.49 inc GST

Description

Benefits
• The Chicago Pneumatic CP7763-6 is the best 3/4" impact wrench for spring work, pinion nut, tractor pad removal, truck tire work, and major engine teardowns
• The tool provides maximum operator comfort and control attributable to great engineering and ergonomics even at high torque levels
• The tool exhibits the comfortable use thanks to low noise and vibration levels
• It features with good durability

Features
• Super duty 3/4" industrial impact mechanism
• Twin hammer clutch
• High power: 1,200 ft.lbs (1,627 Nm)
• Combined power regulator with forward/reverse
• Made in Taiwan

*Protective cover colour may vary.


Technical Specifications:

Part number 8941077636
Model CP7763-6
Handle type Pistol
Square drive 3/4"
Working Torque Range (fwd) 136-1,288 Nm 100-950
Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
Free speed 6300 rpm
Blows per minute 900
Net weight 6.28 kg 13.85 lb
Power/weight ratio 259.1 Nm/kg 86.6 ft.lb/lb
Length 381 mm 15"
Side to center 45 mm 1.8"
Average air consumption 3.5 l/s 7.5 cfm
Actual air consumption 14.2 l/s 30 cfm
Min. hose size 13 mm 1/2"
Noise level 96 db(A)
Sound Power 107 db(A)
Vibration (ISO-8662-7) 9 m/s²
Vibration a (ISO-28927-2) 10.4 m/s²
Vibration K (ISO-28927-2) 4.2 m/s²
Socket retainer Dual
Clutch type Twin hammer
