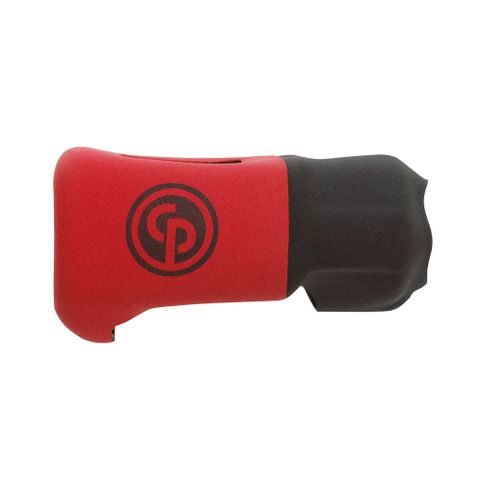

CP7748 Plus Protective Cover Kit
Description
Benefits
•Most powerful tool on the market in its class: 922 ft.lbs – 1250 Nm of maximum real torque in reverse
•Best price to performance/durability ratio
•Lightweight due to composite housing
•Contoured comfort grip handle instead of TPR injected in handle
•Smooth Forward / Reverse Switch on back
•Suited for all maintenance applications: Light vehicle tire changing, General maintenance on vehicles and MRO applications
Features
•1/2" composite impact wrench
•One handed forward/reverse
•Full power in reverse: 922 ft. lb - 1250 Nm maximum real torque in reverse
•3 positions in forward: Low - 180 ft-lbs. / 245 Nm - Medium - 480 ft-lbs. / 650 Nm - High - 730 ft-lbs. / 990 Nm
•Aluminum clutch & back housing
•Friction ring socket retainer
•Full teasing trigger
•Curved to be more ergonomic, Smaller diameter to fit better in hand palm and to be optimum balanced
•Handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip; Resistant to most chemicals used in workshops
•Twin hammer mechanism
•360° swivel air inlet
•Composite housing
Part number
Model CP7748 +PC
Handle type Pistol
Square drive 1/2"
Working Torque Range (fwd) 75-580 ft.lbs 102-786
Maximum Torque (reverse) 920 ft.lbs 1250 Nm
Free speed 8200 rpm
Blows per minute 1200
Net weight 4.6 lb 2 kg
Power/weight ratio 200.4 ft.lb/lb 625 Nm/kg
Length 7.8" 200 mm
Side to center 1 1/2" 38 mm
Average air consumption 6.2 cfm
Actual air consumption 25 cfm
Air inlet thread size 0.25 "
Min. hose size 3/8" 10 mm
Noise level 93 db(A)
Sound Power 104 db(A)
Vibration a (ISO-28927-2) 10.1 m/s²
Vibration K (ISO-28927-2) 2.34 m/s²
Socket retainer Friction ring
Clutch type Twin Hammer
Box dimensions 8,5*8,25*3,03 215*210*77
Over carton 17,9*16,5*9,45 455*420*240
