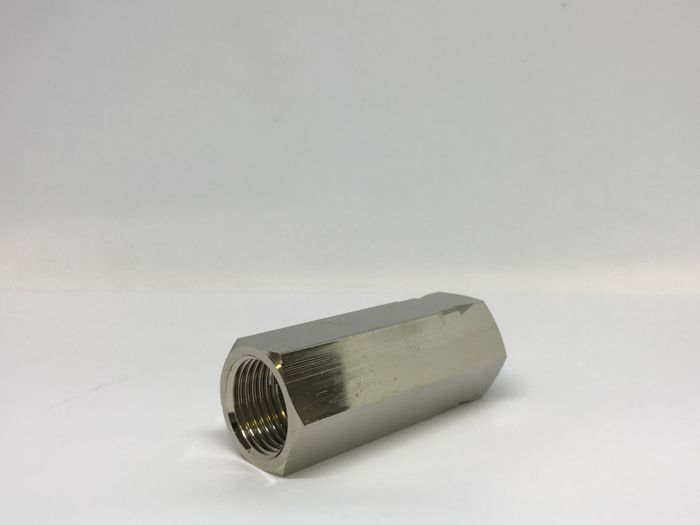

Check Valve 1/2 Inline Nickel 030105

Stock Code:
60712
Price:
$91.54 inc GST

Description

Ancillary Valves - Unidirectional valves in brass

Technical Data
Fluid - Compressed filtered air with or without lubrication
Pressure Range - 2 ÷ 10 bar
Temperature Range - -10°C÷ + 60°C
Orifice - M5=2,2mm; 1/8"=5,2mm; 1/4"=7mm; 3/8"=10mm; 1/2"=12mm; 3/4"=18mm; 1"=24mm
Flow - M5=100 NI/min; 1/8"=500 NI/min; 1/4"=900 NI/min; 3/8"=2.600 NI/min; 1/2"=3.500 NI/min; 3/4"=3100 (a 3 bar)
Mounting - In line
Materials:
Body - Nickel plated brass (3/4" not plated brass)
Internal parts - Brass - spring: Stainless Steel
Seals - Nitrile rubber (NBR) - 3/8" and 1/2" Viton

Series of unidirectional valves from brass hexagonal bar, female threaded. In line mounting they allow the compressed air to flow in one direction only; therefore, they are useful in those applications where no return of the compressed air to the supply is admitted.
