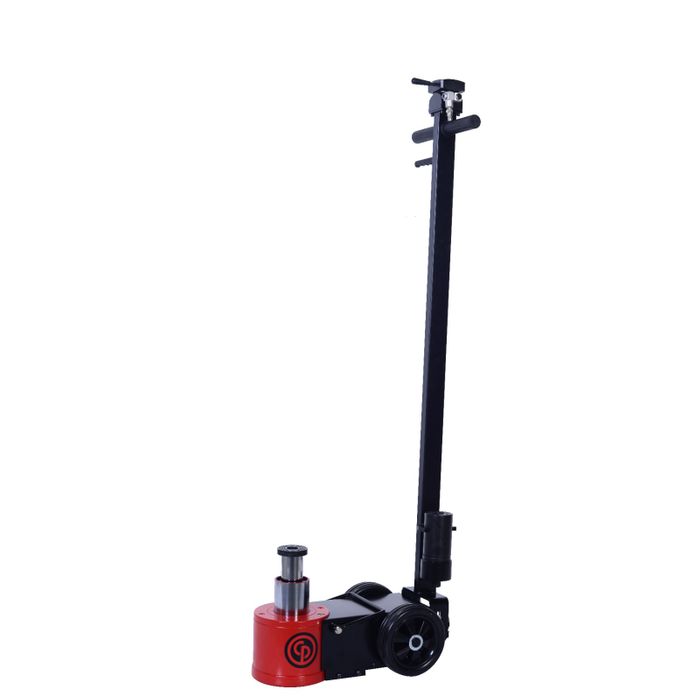

CP85030 AIR HYDRAULIC 30 TONNE JACK

Stock Code:
8941085030
Price:
$4,477.36 inc GST

Description

Benefits

High Lifting Capacity
High Durability
Fast and easy operation controlled from the handle
Low Profile
Convenient
Easy maneuvering and to transport
Safety

Features

Maximum height: 16.1 in. / 409 mm
Air powered piston
Includes 2 extensions for higher lifting - Stored on handle for transport
Piston and pump
Anti dust seals
Ideal for easily accessing lifting points on low chassis trucks and buses
Convenient joystick controls
Cylinder mounted carrying handle
4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to controls when fully positioned under vehicle
Handle bar locks in 3 positions: 45°, 90° & 180°
Large & soft rubber wheels


Model CP85030
Part number 8941085030
Box dimensions 520X290X210 1390X280X110 mm 20.5X11.4X8.3 54.7X11.0X14.3 "
Capacity 30 / 15 ton(s) 33.1 short ton(s)
Description CP85030 AIR HYDRAULIC JACK - 30 tons
Dimension A 150 mm 5.90322580645161 "
Dimension B 176 mm 6.94222222222222 "
Dimension C 290 mm 11.4739130434783 "
Dimension D 240 mm 9.46285714285714 "
Dimension D+E 326 mm 12.8424242424242 "
Dimension E 86 mm 3.3762962962963 "
Dimension F 223/289 mm 8.8/11.4 "
Dimension G 1365 mm 53.76 "
Dimension P 71 mm 2.79630769230769 "
Net weight 38 kg 83.7809523809524 lb
UPC Code 015451767945
Wheel type Rubber

Stock Level:
Out of Stock

Add To Quote

Notify When in Stock
